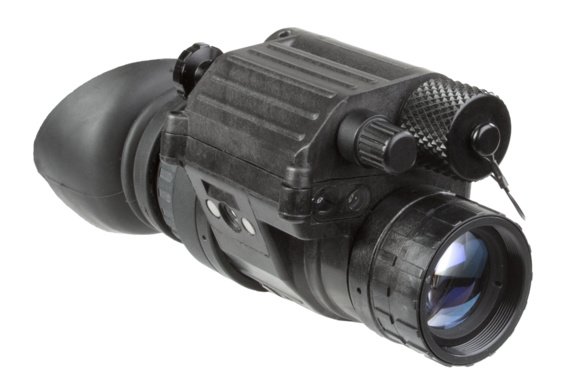

The AGM PVS-14 NW1 sits at the top of AGM’s Gen 2+ PVS-14 range. It takes the same MIL-STD-810G AN/PVS-14 housing and high-FOM Photonis Level 1 tube as the NL1, but in white phosphor (P45), the combination most experienced users choose when budget allows. The result is the cleanest, most natural Gen 2+ image AGM produces in this line in the most widely supported form factor for night vision in the world.
Design and build
The waterproof magnesium-alloy housing meets MIL-STD-810G and follows the AN/PVS-14 footprint, so it drops into standard head, helmet, and weapon mounts. Manual gain control, a 27 mm F/1.2 light-gathering objective, 0.25 m-to-infinity focus, a built-in IR illuminator, and automatic bright-source cut-off are all present; weight stays under 350 g on a single CR123A. The full head-mount assembly and accessory kit are included in the box for immediate hands-free use.
White phosphor at FOM 1400-1800
The NW1 uses a Photonis Gen 2+ Level 1 white-phosphor (P45) tube with a Figure of Merit of 1400-1800 and a resolution of 51-64 lp/mm. AGM describes its white-phosphor Level 1 selection as its highest-resolution and cleanest, with practically no spots in Zone 1. White phosphor renders the night in shades of grey rather than green; combined with the high FOM, that produces an image many users read faster and tolerate longer because greyscale maps onto how the eye naturally interprets a moonlit scene.
FOM (resolution multiplied by signal-to-noise ratio) is the key quality figure and varies per tube, so confirm the exact value on the unit you buy. If you prefer the traditional green look at the same grade, the PVS-14 NL1 is the equivalent in P43 green.
Real-world applications
Professional and search work: the high-FOM white-phosphor tube, manual gain, and weatherproof standard housing make this a tool for demanding, long-duration night operations where clarity and stamina matter.
Hunting and land management: the natural grayscale helps separate animals from the background at 1x, and the device mounts to a helmet for hands-free movement or behind a weapon for passive aiming with a compatible reticle device.
Observation and navigation: a lag-free, life-size 1x image suits glassing, walking, and driving on private ground, with instant flip-up stowage on a standard mount.
How it compares
Against the green NL1, the NW1 costs a little more for the natural grayscale image, the upgrade most long-session users value. Against the Wolf-14 NW1, it adds the MIL-STD-810G housing, the universal PVS-14 ecosystem, manual gain, a higher Photonis FOM band, and a full helmet kit. Against Gen 3 auto-gated white phosphor tubes, it is far more affordable but does not auto-gate against rapid light changes or match Gen 3 reach on the very darkest nights; it is the honest trade for the price.
Technical specifications
| Specification | Detail |
|---|---|
| Form factor / standard | AN/PVS-14; conforms to MIL-STD-810G |
| Image intensifier | Gen 2+ image intensifier tube (IIT) |
| Phosphor | P45 white phosphor |
| Tube grade / FOM | Photonis Level 1; FOM 1400-1800 |
| Resolution | 51-64 lp/mm |
| Magnification | 1x (3x and 5x optional) |
| Objective lens | 27 mm, F/1.2 |
| Field of view | Approx. 40 degrees |
| Focus range | 0.25 m to infinity |
| Gain control | Manual gain |
| IR illuminator | Built-in IR |
| Bright-light protection | Automatic bright-source cut-off |
| Battery | 1x CR123A (3V) |
| Weight | Under 350 g (12.4 oz) |
| Mounting | Standard PVS-14 dovetail; full head-mount kit included |
What’s in the box

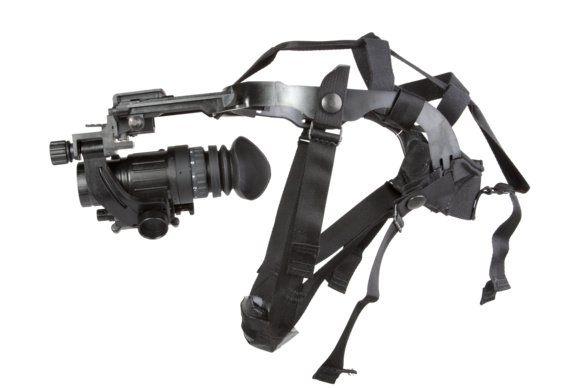

Night vision monocular, head mount assembly, brow pad, eye cup, helmet/head mount adapter, soft carrying case, daylight filter, shoulder strap, lens paper, diopter lens cap, sacrificial window, demist shields, battery, operator’s manual.
Pairs well with
- If you prefer the traditional green image: AGM PVS-14 NL1 Night Vision Monocular
- If you want a lighter, cheaper white-phosphor unit: AGM Wolf-14 NW1 Night Vision Monocular
- If you want hands-free goggles: Night Vision Goggles
FAQ
- Why is the PVS-14 NW1 the most expensive in the Gen 2+ line? It combines AGM’s highest Gen 2+ grade, a Photonis Level 1 white-phosphor tube at FOM 1400-1800, with the MIL-STD-810G PVS-14 housing and full helmet kit. You are paying for the best tube and the standard housing together.
- Is white phosphor worth it over green at this grade? At the same Level 1 / FOM band, it comes down to personal preference. Many users find white phosphor’s grayscale clearer and less tiring over long sessions; green can give strong contrast in the lowest light and costs slightly less (the NL1).
- Does it support passive aiming on a rifle? Yes. Mounted behind a compatible reticle device on a weapon rail, it allows passive aiming with no visible light, and it also helmet-mounts for hands-free use.
- Is it waterproof? Yes. The magnesium-alloy PVS-14 housing conforms to MIL-STD-810G and is built to resist water, dust, and shock.
