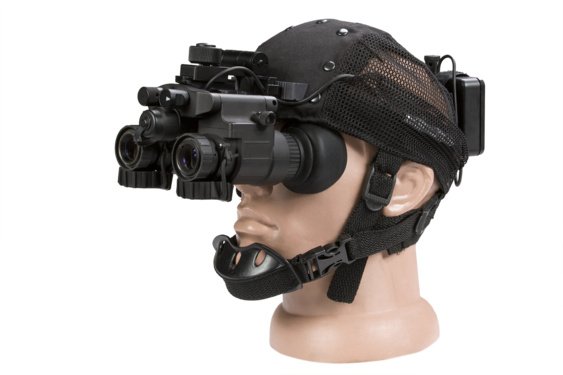

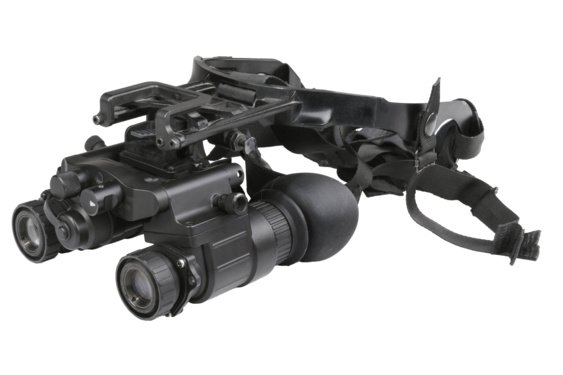

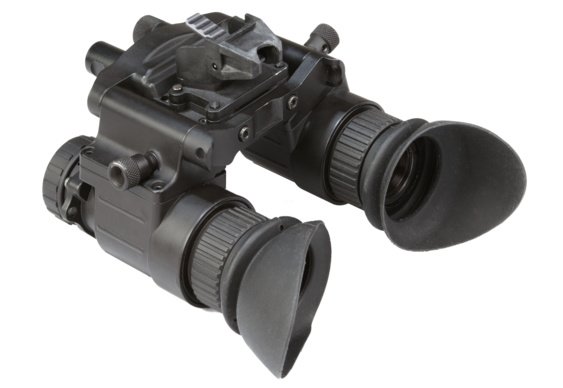

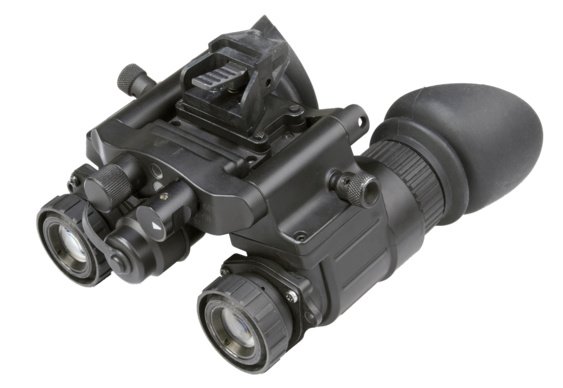

The AGM 50 NW1 is AGM’s NVG-50 dual-channel night vision goggle fitted with white-phosphor tubes. Where the Wolf-7 Pro shares a single tube for both eyes, the NVG-50 gives each eye its own Photonis Gen 2+ image intensifier, a true binocular. That is the difference between a flat picture and genuine stereoscopic depth, and it is what allows a user to walk broken ground, step over obstacles, descend stairs, or drive at night with confidence. A wide 51-degree field of view adds to that situational awareness, and the white-phosphor tubes render it all in natural greyscale.
Design and build
The NVG-50 uses a compact composite housing with multi-coated optics and a dual-channel optical path. At 1x magnification with a 51-degree field of view, it shows a large, life-size scene without panning. Each channel focuses from roughly 0.25 m (10 inches) to infinity, and a built-in IR illuminator covers close work in total darkness.
Power is deliberately flexible: a single AA alkaline or a CR123 A lithium cell runs the unit up to 20 hours, and an optional external battery pack extends that for long deployments. A pre-installed NVG interface shoe fits standard dovetail headset and helmet mounts, and the housing is compatible with AN/PVS-7D, PVS-14, PVS-7A/C, PVS-15, and PVS-18 mounts plus mini-rail interfaces. You can also switch off one tube to run it as a monocular and conserve battery.
The tubes: Photonis FOM 1400-1800, white phosphor
This NW1 build uses dual Photonis Gen 2+ white-phosphor (P45) tubes at Level 1 grade, with a figure of merit of 1400-1800, a strong band that pairs high resolution with low noise. Because depth perception depends on both eyes receiving a clean image, matched high-FOM tubes matter even more in a binocular than in a monocular.
One important distinction sits above this model: the NVG-50 NW1 is not auto-gated. Auto-gating rapidly switches the photocathode on and off to control exposure under changing or bright light, preventing bloom around streetlights, vehicle headlights, or muzzle flash. For rural, low-light hunting and observation, the non-gated NW1 is excellent value; if you operate around dynamic artificial light, the auto-gated NVG-50 AP and APW are the better fit.
Real-world applications
Mounted movement: the depth perception of dual tubes makes the NVG-50 the right choice for walking rough terrain, fast stalks, working dogs at night, or driving on private land tasks where a flat bi-ocular image is unsafe.
Hunting and land management: helmet-mounted hands-free operation provides true depth for navigating to and between positions; switch to monocular mode to stretch battery life on long sits.
Search, security, and SAR: the wide 51-degree field of view and stereoscopic image speed up scanning and movement through complex environments.
How it compares
Against the bi-ocular Wolf-7 Pro, the NVG-50 NW1 roughly doubles the price but adds genuine depth perception and a wider field of view, the upgrade that defines safe night movement. Within the NVG-50 line, this NW1 is the value entry: the AP and APW models add auto-gating (and a higher FOM 1600-2000 band) for dynamic-light environments, and AGM’s 3A versions move up to Gen 3+ auto-gated tubes. For rural night use without artificial light, the NW1 captures most of the benefits at a lower cost.
Technical specifications
| Specification | Detail |
|---|---|
| Configuration | Dual-tube binocular (true depth); monocular mode selectable |
| Image intensifier | Dual Gen 2+ Photonis IIT, Level 1 |
| Auto-gating | No |
| Phosphor | P45 white phosphor |
| FOM | Photonis 1400-1800 |
| Magnification | 1x |
| Field of view | 51 degrees |
| Focus range | Approx. 0.25 m (10 in) to infinity |
| IR illuminator | Built-in |
| Battery | 1x AA or 1x CR123A; up to 20 h; optional battery pack |
| Optics / housing | Multi-coated optics; compact composite housing |
| Mounting | Pre-installed NVG interface shoe; AN/PVS-7/14/15/18 and dovetail compatible |
What’s in the box
Dual-tube night vision goggles, headgear/mount interface, soft carrying case, hard case, battery, lens paper, user manual (confirm exact kit with supplier).
Pairs well with
- If you operate around artificial light: AGM NVG-50 AP Dual-Tube Night Vision Goggle
- If you want the flagship white-phosphor build: AGM NVG-50 APW Dual-Tube Night Vision Goggle
- If you want a more affordable hands-free goggle: AGM Wolf-7 Pro NW1 Night Vision Goggle
FAQ
- What is the difference between the AGM 50 (NVG-50) and the Wolf-7 Pro? The NVG-50 is a true dual-tube binocular, one tube per eye for stereoscopic depth perception, while the Wolf-7 Pro is a bi-ocular that shares one tube with both eyes and shows a flat image.
- Is the NVG-50 NW1 auto-gated? No. The NW1 is non-gated, which is ideal for rural low-light use. If you operate around streetlights, headlights, or other dynamic light, choose the auto-gated NVG-50 AP or APW.
- Can I use just one tube to save battery? Yes. You can switch off one channel to run the NVG-50 as a monocular and extend battery life on long sessions.
- Which helmet mounts fit it? It has a pre-installed NVG interface shoe for standard dovetail headset and helmet mounts and is compatible with AN/PVS-7D, PVS-14, PVS-7A/C, PVS-15, and PVS-18 mounts.
