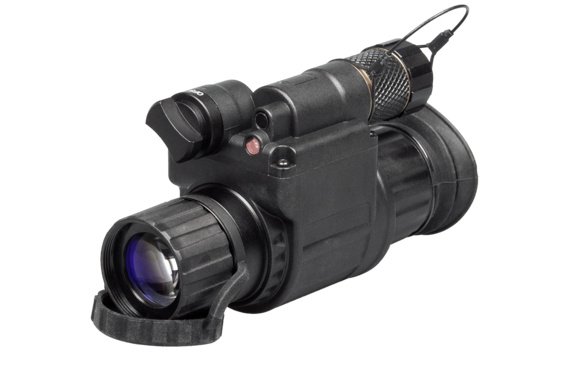

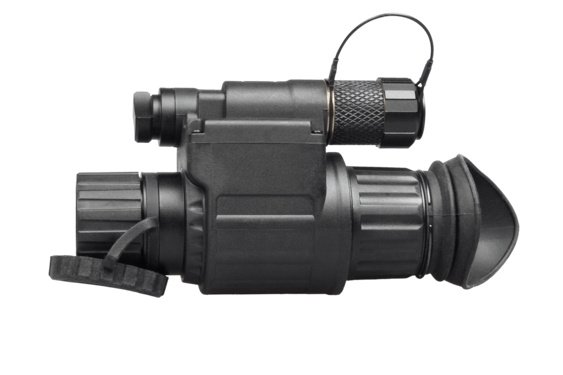

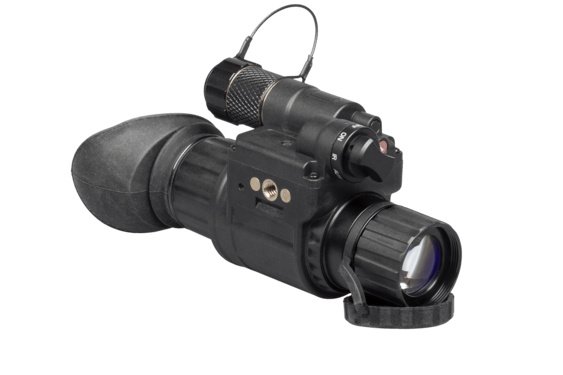

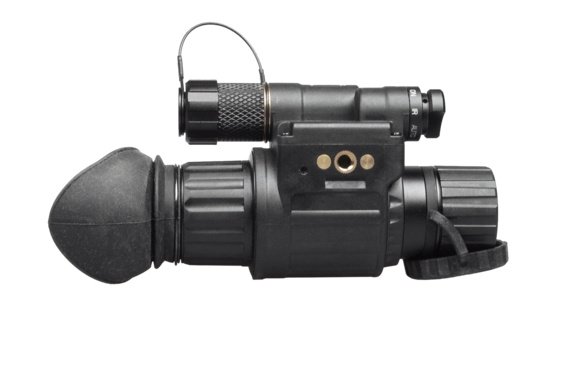

The AGM Wolf-14 NW1 is the white-phosphor version of AGM’s value night vision monocular. Mechanically it is the same proven Wolf-14, a single-tube Generation 2+ intensifier with a built-in infrared illuminator and a helmet-ready housing, but the image intensifier tube uses a P45 white phosphor screen rather than the traditional P43 green. The result is a scene rendered in shades of grey, which is increasingly the preference of hunters and professionals alike because it more closely matches how the eye naturally interprets a low-light landscape.
Design and build
Like the green-phosphor NL1, the NW1 keeps a single operating knob, a flip-up helmet function, an automatic bright-light cut-off, and a built-in spot/flood IR illuminator. The fast 25 mm F/1.2 objective feeds the tube as much ambient light as possible; focus runs from 0.25 m to infinity with 21.5 mm eye relief and a -5 to +5 diopter range. At roughly 450 g it is light enough for extended helmet-mounted use, and a single CR123 A lithium cell (AA adapter included) lasts about 40 hours.

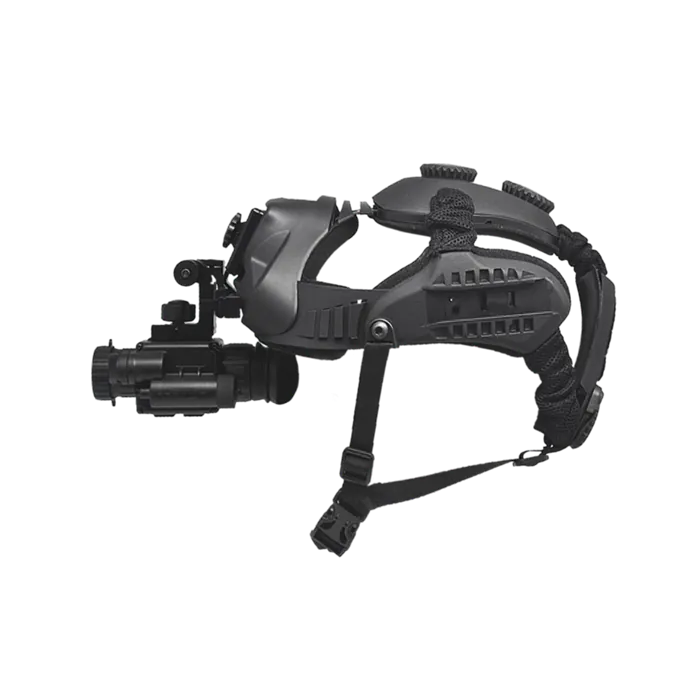

The housing accepts the same J-arm and Rhino mount as the NL1, so it drops straight into existing AGM and standard night vision mounting ecosystems for head, helmet, or passive weapon use.
Why white phosphor: P45, resolution and FOM
The ‘NW1’ code marks a white-phosphor (P45) tube of AGM’s Level 1 grade. AGM describes its NW1 tube as the highest-resolution and cleanest it offers in this class, with practically no visible spots in the central Zone 1 and a resolution in the 51-64 line-pairs-per-millimeter range. White phosphor does not make the tube ‘better’ than green on paper, but in the field the grayscale rendering helps many users separate vegetation, ground, and animals more readily and reduces the eye fatigue that a saturated green image can cause over hours.
As with any intensifier, the Figure of Merit (resolution multiplied by signal-to-noise ratio) is the single most useful quality number, and it varies from tube to tube. The Wolf-14 NW1 sits below the Photonis high-FOM tubes used in the PVS-14 line; if maximum FOM is the priority, compare directly before buying, as each tube is individually graded.
Real-world applications
Hunting: The natural grayscale image makes it easier to read an animal’s posture and pick it out of background clutter at 1x, whether you are scanning a feed line or following up after the shot. White phosphor’s gentler image is a real advantage on all-night sits.
Security and search: helmet-mounted and hands-free, the NW1 suits perimeter patrol, livestock protection, and property checks; the built-in IR illuminator covers indoor and deep-shadow areas with no ambient light.
Navigation and recreation: at 1x, the world stays life-size for walking, boating, or driving off-road on private land, and the flip-up mount lets you switch between night vision and natural sight instantly.
How it compares
Compared with the green NL1, the NW1 costs slightly more and returns a more natural, lower-fatigue image, the upgrade is most buyers notice first. Compared with AGM’s PVS-14 NW1, the Wolf-14 NW1 is lighter and more affordable but uses a value housing rather than the MIL-STD-810G magnesium body and the highest Photonis FOM tubes; for hunting and recreation, that is usually the smarter spend. Against Gen 3 auto-gated devices, this Gen 2+ unit is far cheaper but does not gate against rapidly changing light or match Gen 3 low-light reach.
Technical specifications
| Specification | Detail |
|---|---|
| Image intensifier | Gen 2+ image intensifier tube (IIT) |
| Phosphor | P45 white phosphor |
| Tube grade | AGM Level 1 |
| Resolution | 51-64 lp/mm |
| Magnification | 1x (3x and 5x afocal lenses optional) |
| Objective lens | 25 mm, F/1.2 |
| Field of view | Approx. 40-42 degrees |
| Focus range | 0.25 m to infinity |
| Eye relief / diopter | 21.5 mm / -5 to +5 |
| IR illuminator | Built-in spot/flood IR |
| Bright-light protection | Automatic bright-source cut-off |
| Battery | 1x CR123A (3V); AA adapter included |
| Battery life | Up to ~40 hours |
| Operating temperature | -40 C to +50 C |
| Weight | Approx. 450 g |
| Mounting | Handheld, head/helmet, weapon; J-arm and Rhino mount |
What’s in the box

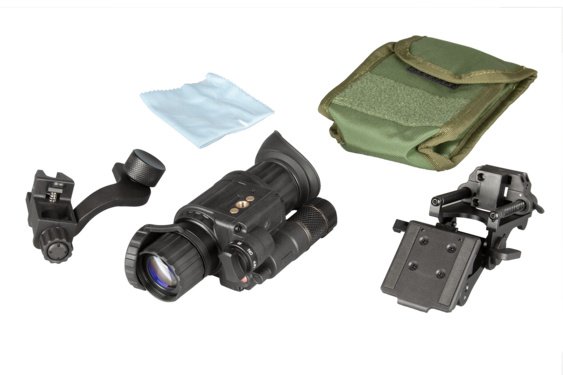

The box includes a night vision monocular, a Rhino mount, a J-arm, a soft carrying bag, lens paper, a hard/safety case, one CR123A battery, an AA battery adapter, and a user manual.
Pairs well with
- If you want a lower price in green phosphor: AGM Wolf-14 NL1 Night Vision Monocular

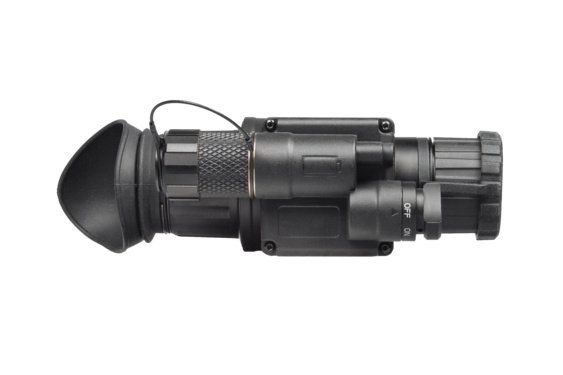

- If you want the military-standard PVS-14 housing: AGM PVS-14 NW1 Night Vision Monocular
- If you want hands-free goggles: Night Vision Goggles
FAQ
- Is white phosphor better than green phosphor? Neither is objectively ‘better’; white phosphor (P45) shows the scene in natural greyscale that many users find clearer and less tiring over long sessions, while green (P43) is traditional and usually cheaper. The tube’s figure of merit matters more than color.
- What resolution does the Wolf-14 NW1 deliver? AGM rates the NW1 Level 1 tube at 51-64 line pairs per millimeter, making it among the cleanest it offers in this class, with very few spots in the central image zone.
- Is the Wolf-14 NW1 excellent for hunting? Yes. At true 1x, it gives a life-size, lag-free image for scanning and following games, and the built-in IR illuminator covers areas with no moonlight.
- How long does the battery last? About 40 hours on a single CR123A lithium cell; an AA adapter is included for resupply in the field.
