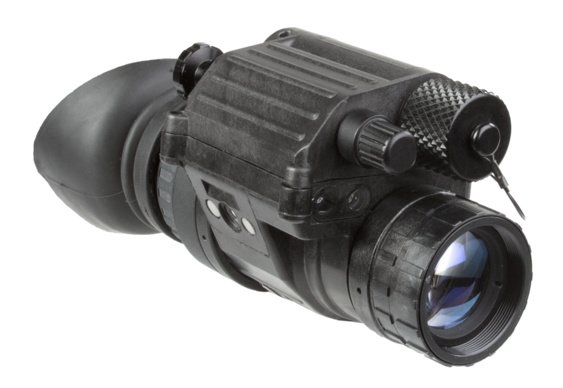

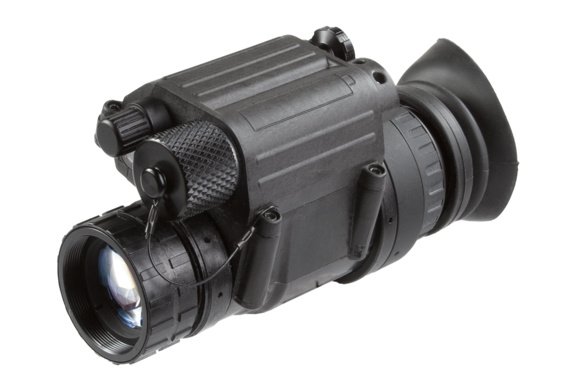

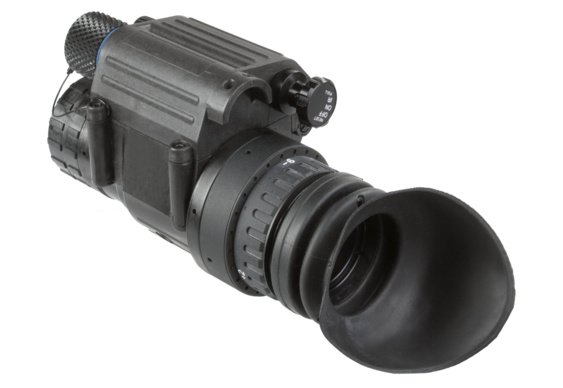

The AGM PVS-14 NL2 is AGM’s build of the AN/PVS-14, the single-tube night vision monocular originally commissioned by the United States military and now the global reference design for handheld and helmet-mounted night vision. Choosing a PVS-14 is as much about the housing and ecosystem as the tube: the form factor is supported by an enormous range of mounts, adapters, and accessories, and it meets the MIL-STD-810G environmental standard for shock, water and temperature. The NL2 designation pairs that proven platform with a Gen 2+ green-phosphor tube at AGM’s Level 2 grade, their second-tier selection, with a very limited number of cosmetic spots in the critical central zone to bring the PVS-14 in at the most accessible price in the line.
Design and build
The PVS-14 housing is machined to the AN/PVS-14 footprint in a waterproof magnesium-alloy body that meets MIL-STD-810G. That matters in practice: it shrugs off rain, dust, and the knocks of a working night, and it accepts standard dovetail and bayonet mounts so it can move between a head harness, a helmet shroud, and a weapon rail without proprietary adapters. At under 350 g, it is lighter than the Wolf-14 despite the tougher shell.
Controls center on manual gain, a feature absent from cheaper night vision, letting you dial brightness up in deep shadow or down under a bright moon to preserve detail. A 27 mm F/1.2 objective gathers light efficiently; focus runs from 0.25 m to infinity; and a built-in IR illuminator plus automatic bright-source cut-off round out the feature set. A single CR123A powers the unit.
The Level 2 tube: what the grade means
AGM grades its Gen 2+ tubes by cosmetic and performance quality. Level 1 is the cleanest, highest-resolution selection; Level 2, used here, is the second-best described by AGM as having a very limited number of spots in Zone 1, the central area of the image where blemishes are most noticeable. For most hunting, observation, and general use, a Level 2 tube delivers a clean, usable image at a meaningful saving over Level 1.
This NL2 uses green phosphor (P43). If you prefer the natural greyscale of white phosphor or want AGM’s highest Photonis FOM 1400-1800 tubes, step up to the PVS-14 NL1 (green, Level 1) or NW1 (white, Level 1). Because tubes are individually selected, ask for the resolution and figure of merit for the specific unit.
Real-world applications
Professional and security use: the PVS-14 is the default choice where the device must mount to a duty helmet, survive weather, and integrate with existing kit. Manual gain helps in mixed lighting around buildings and vehicles.
Hunting and land management: helmet- or head-mounted, it keeps both hands on the rifle or the terrain; mounted behind a weapon, it enables passive aiming with a compatible reticle device, with no white light to betray your position.
Navigation: At 1x the image is life-size and lag-free for moving on foot, on water, or in a vehicle on private land, and the standard mount lets you flip it out of the way instantly.
How it compares
Against the Wolf-14, the PVS-14 NL2 costs more but adds the MIL-STD-810G housing, the universal PVS-14 mounting ecosystem, manual gain, and a full helmet-mount kit in the box, which are reasons professionals choose it. Within the PVS-14 line, the NL2 is the value entry: the NL1 steps up to a Level 1 green tube with Photonis FOM 1400-1800, and the NW1 adds white phosphor on top of that. Against Gen 3 auto-gated PVS-14 variants, this Gen 2+ unit is far more affordable but does not gate against fast-changing light or reach as far on the darkest nights.
Technical specifications
| Specification | Detail |
|---|---|
| Form factor / standard | AN/PVS-14; conforms to MIL-STD-810G |
| Image intensifier | Gen 2+ image intensifier tube (IIT) |
| Phosphor | P43 green phosphor |
| Tube grade | AGM Level 2 |

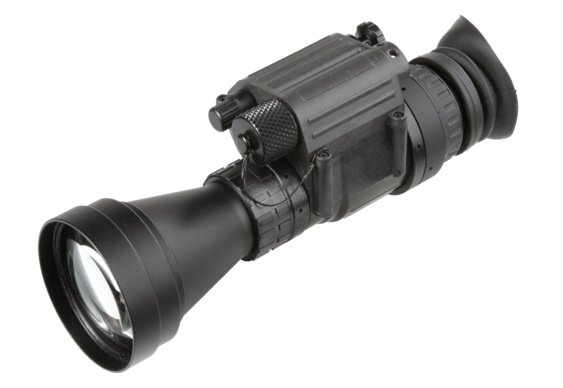

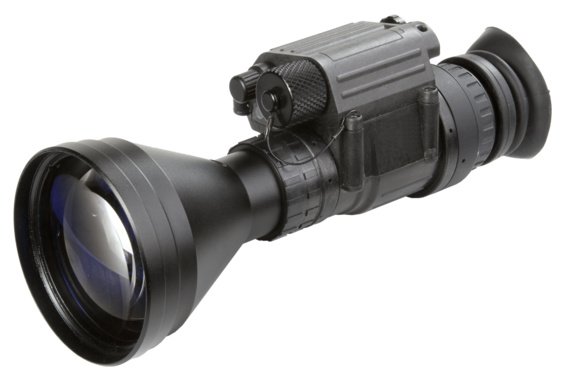

| Magnification | 1x (3x and 5x optional) |
| Objective lens | 27 mm, F/1.2 |
| Field of view | Approx. 40 degrees |
| Focus range | 0.25 m to infinity |
| Gain control | Manual gain |

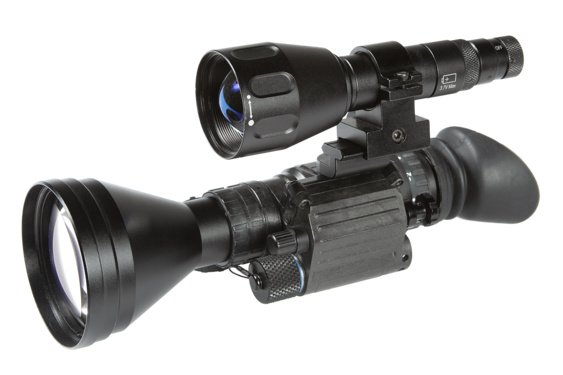

| IR illuminator | Built-in IR |
| Bright-light protection | Automatic bright-source cut-off |
| Battery | 1x CR123A (3V) |
| Weight | Under 350 g (12.4 oz) |
| Housing | Waterproof magnesium alloy |
| Mounting | Standard PVS-14 dovetail; head harness included; helmet/weapon compatible |
What’s in the box

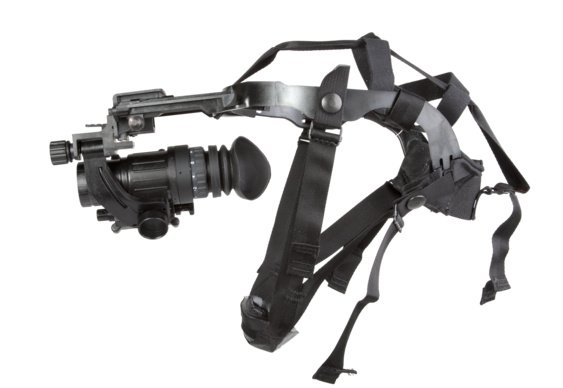

Night vision monocular, head mount assembly, brow pad, eye cup, helmet/head mount adapter, soft carrying case, daylight filter, shoulder strap, lens paper, diopter lens cap, sacrificial window, demist shields, battery, operator’s manual.
Pairs well with
- If you want a higher-grade green tube: AGM PVS-14 NL1 Night Vision Monocular
- If you want white phosphor: AGM PVS-14 NW1 Night Vision Monocular
- If you want a lighter, cheaper housing: AGM Wolf-14 NL1 Night Vision Monocular
FAQ
- What does MIL-STD-810G mean for the PVS-14? It is a US military environmental test standard covering shock, water, and temperature resistance. A PVS-14 built to it is rated to survive rain, dust, and demanding field use, unlike many cheaper night vision housings.
- What is the difference between the PVS-14 NL2 and NL1? Both are green-phosphor Gen 2+ tubes. NL2 is AGM’s Level 2 (second-best) grade at a lower price; NL1 is the Level 1 grade with Photonis FOM 1400-1800 for a cleaner, higher-performance image.

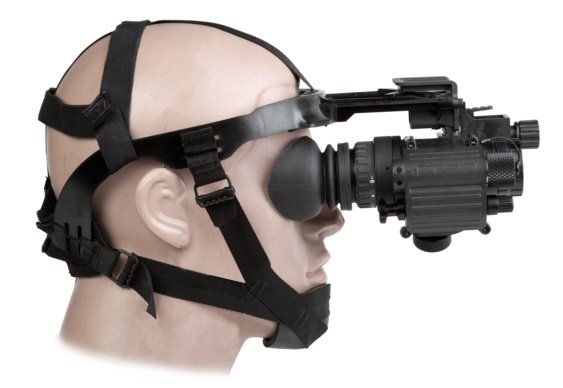

- Can I use the PVS-14 on a helmet and a rifle? Yes. It uses the standard PVS-14 mounting footprint, ships with a head-mount assembly, and accepts standard helmet shrouds and weapon mounts for passive aiming.
- Does it have manual gain control? Yes. You can adjust image brightness manually to suit deep shadow or bright moonlight, which cheaper night vision units usually cannot do.
